Suricata6.0.9 CANNOT Recevie HUP Signal and CANNOT Reload

Help
1

Expect

I hope to restart/reload suricata process in a container when suricata.yaml is updated.

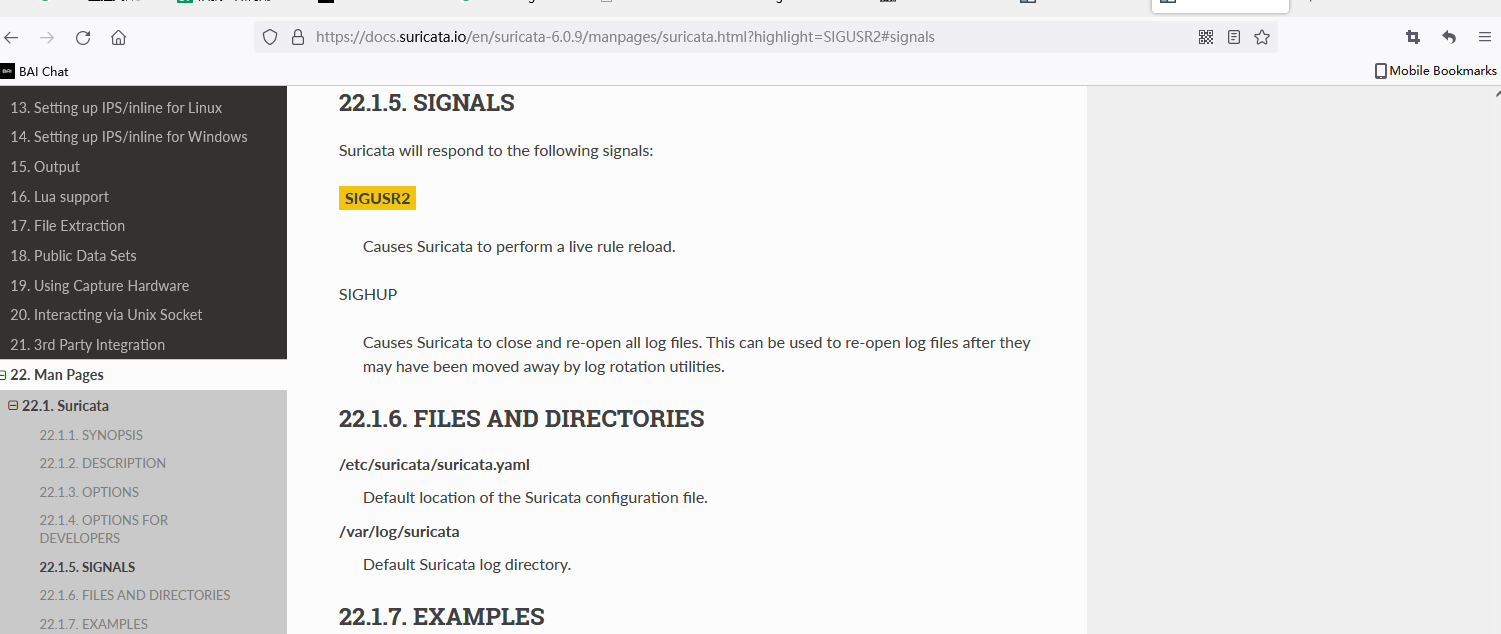

I think suricata could receive HUP signal and reload configuration files and then changes take effect.

Test

User secur1ty is a normal user and I use secur1ty to start suricata process in the container.

start cmd

exec gosu secur1ty /opt/suricata/bin/suricata --af-packet -c /opt/suricata/etc/suricata/config/suricata.yaml

suricata.yaml

Summary
%YAML 1.1
---

vars:
  address-groups:  # to be customised
    HOME_NET: "[192.168.0.0/16,10.0.0.0/8,172.16.0.0/12]"

    EXTERNAL_NET: "!$HOME_NET"

    HTTP_SERVERS: "$HOME_NET"
    SMTP_SERVERS: "$HOME_NET"
    SQL_SERVERS: "$HOME_NET"
    DNS_SERVERS: "$HOME_NET"
    TELNET_SERVERS: "$HOME_NET"
    AIM_SERVERS: "$EXTERNAL_NET"
    DC_SERVERS: "$HOME_NET"
    DNP3_SERVER: "$HOME_NET"
    DNP3_CLIENT: "$HOME_NET"
    MODBUS_CLIENT: "$HOME_NET"
    MODBUS_SERVER: "$HOME_NET"
    ENIP_CLIENT: "$HOME_NET"
    ENIP_SERVER: "$HOME_NET"

  port-groups:
    HTTP_PORTS: "80"
    SHELLCODE_PORTS: "!80"
    ORACLE_PORTS: 1521
    SSH_PORTS: 22
    DNP3_PORTS: 20000
    MODBUS_PORTS: 502
    FILE_DATA_PORTS: "[$HTTP_PORTS,110,143]"
    FTP_PORTS: 21
    GENEVE_PORTS: 6081
    VXLAN_PORTS: 4789
    TEREDO_PORTS: 3544


default-log-dir: /var/log/suricata-manual/

stats:
  enabled: yes
  interval: 8

outputs:
  - fast:
      enabled: no
      filename: fast.log
      append: yes

  - eve-log:
      enabled: yes
      filetype: regular #regular|syslog|unix_dgram|unix_stream|redis
      filename: suricata_event.json

      metadata: yes

      pcap-file: false


      community-id: false
      community-id-seed: 0

      xff:
        enabled: no
        mode: extra-data
        deployment: reverse
        header: X-Forwarded-For

      types:
        - alert:
              payload: yes             # enable dumping payload in Base64
              payload-buffer-size: 4kb # max size of payload buffer to output in eve-log
              payload-printable: yes   # enable dumping payload in printable (lossy) format
              packet: yes              # enable dumping of packet (without stream segments)
              metadata: yes             # enable inclusion of app layer metadata with alert. Default yes
              http-body: yes         # Requires metadata; enable dumping of HTTP body in Base64
              http-body-printable: yes # Requires metadata; enable dumping of HTTP body in printable format

        - anomaly:
            enabled: no
            types:
        - http:
            extended: yes     # enable this for extended logging information
        - dns:


            enabled: yes



        - tls:
            extended: yes     # enable this for extended logging information
        - files:
            force-magic: no   # force logging magic on all logged files
        - smtp:

        - dnp3
        - ftp
        - rdp
        - nfs
        - smb
        - tftp
        - ikev2
        - dcerpc
        - krb5
        - snmp
        - rfb
        - sip
        - dhcp:
            enabled: yes
            extended: no
        - ssh
        - mqtt
        - http2
        - stats:
            totals: yes       # stats for all threads merged together
            threads: no       # per thread stats
            deltas: no        # include delta values
        - flow

        - metadata

  - http-log:
      enabled: yes
      filename: http.log
      append: yes

  - tls-log:
      enabled: yes  # Log TLS connections.
      filename: tls.log # File to store TLS logs.
      append: yes

  - tls-store:
      enabled: yes

  - pcap-log:
      enabled: no
      filename: log.pcap

      limit: 1000mb

      max-files: 2000

      compression: none


      mode: normal # normal, multi or sguil.


      use-stream-depth: no #If set to "yes" packets seen after reaching stream inspection depth are ignored. "no" logs all packets
      honor-pass-rules: no # If set to "yes", flows in which a pass rule matched will stop being logged.

  - alert-debug:
      enabled: no
      filename: alert-debug.log
      append: yes

  - alert-prelude:
      enabled: no
      profile: suricata
      log-packet-content: yes
      log-packet-header: yes

  - stats:
      enabled: yes
      filename: stats.log
      append: yes       # append to file (yes) or overwrite it (no)
      totals: yes       # stats for all threads merged together
      threads: no       # per thread stats

  - syslog:
      enabled: no
      facility: local5

  - file-store:
      version: 2
      enabled: yes

      dir: /var/log/suricata-filestore/filestore

      write-fileinfo: yes

      force-filestore: yes

      stream-depth: 0


      force-hash: [sha1, md5]
      xff:
        enabled: no
        mode: extra-data
        deployment: reverse
        header: X-Forwarded-For

  - tcp-data:
      enabled: no
      type: file
      filename: tcp-data.log

  - http-body-data:
      enabled: no
      type: file
      filename: http-data.log

  - lua:
      enabled: no
      scripts:

logging:
  default-log-level: notice


  default-output-filter:


  outputs:
  - console:
      enabled: yes
  - file:
      enabled: yes
      level: info
      filename: suricata.log
  - syslog:
      enabled: no
      facility: local5
      format: "[%i] <%d> -- "



af-packet:
  - interface: enp0s3
    threads: auto # customised
    cluster-id: 99
    cluster-type: cluster_flow
    defrag: yes
    use-mmap: yes # customised
    tpacket-v3: yes # customised

  - interface: default
    threads: auto
    use-mmap: yes
    tpacket-v3: yes

pcap:
  - interface: eth0
  - interface: default

pcap-file:
  checksum-checks: auto




app-layer:
  protocols:
    rfb:
      enabled: yes
      detection-ports:
        dp: 5900, 5901, 5902, 5903, 5904, 5905, 5906, 5907, 5908, 5909
    mqtt:
      enabled: yes
    krb5:
      enabled: yes
    snmp:
      enabled: yes
    ikev2:
      enabled: yes
    tls:
      enabled: yes
      detection-ports:
        dp: 443



    dcerpc:
      enabled: yes
    ftp:
      enabled: yes
    rdp:
      enabled: yes
    ssh:
      enabled: yes
    http2:
      enabled: yes
      http1-rules: no
    smtp:
      enabled: yes
      raw-extraction: no
      mime:
        decode-mime: yes

        decode-base64: yes
        decode-quoted-printable: yes

        header-value-depth: 2000

        extract-urls: yes
        body-md5: no
      inspected-tracker:
        content-limit: 100000
        content-inspect-min-size: 32768
        content-inspect-window: 4096
    imap:
      enabled: detection-only
    smb:
      enabled: yes
      detection-ports:
        dp: 139, 445


    nfs:
      enabled: yes
    tftp:
      enabled: yes
    dns:
      tcp:
        enabled: yes
        detection-ports:
          dp: 53
      udp:
        enabled: yes
        detection-ports:
          dp: 53
    http:
      enabled: yes



      libhtp:
         default-config:
           personality: IDS

           request-body-limit: 100kb
           response-body-limit: 100kb

           request-body-minimal-inspect-size: 32kb
           request-body-inspect-window: 4kb
           response-body-minimal-inspect-size: 40kb
           response-body-inspect-window: 16kb

           response-body-decompress-layer-limit: 2

           http-body-inline: auto

           swf-decompression:
             enabled: yes
             type: both
             compress-depth: 100kb
             decompress-depth: 100kb


           double-decode-path: no
           double-decode-query: no


         server-config:



    modbus:

      enabled: yes
      detection-ports:
        dp: 502

      stream-depth: 0

    dnp3:
      enabled: yes
      detection-ports:
        dp: 20000

    enip:
      enabled: yes
      detection-ports:
        dp: 44818
        sp: 44818

    ntp:
      enabled: yes

    dhcp:
      enabled: yes

    sip:
      enabled: yes

asn1-max-frames: 256






pid-file: /var/run/suricata.pid




coredump:
  max-dump: unlimited

host-mode: auto

max-pending-packets: 15000  # to be customised

runmode: workers    # customised autofp when testing pcap files, workers in run-time mode



unix-command:
  enabled: no # default:auto



legacy:
  uricontent: enabled





engine-analysis:
  rules-fast-pattern: yes
  rules: yes

pcre:
  match-limit: 3500
  match-limit-recursion: 1500


host-os-policy:
  windows: [0.0.0.0/0]
  bsd: []
  bsd-right: []
  old-linux: []
  linux: []
  old-solaris: []
  solaris: []
  hpux10: []
  hpux11: []
  irix: []
  macos: []
  vista: []
  windows2k3: []


defrag:
  memcap: 200mb # 32mb
  hash-size: 65536
  trackers: 65535 # number of defragmented flows to follow
  max-frags: 65535 # number of fragments to keep (higher than trackers)
  prealloc: yes
  timeout: 60



flow:
  memcap: 512mb # 128mb customised
  hash-size: 65536
  prealloc: 10000
  emergency-recovery: 30

vlan:
  use-for-tracking: true


flow-timeouts:

  default:
    new: 30
    established: 300
    closed: 0
    bypassed: 100
    emergency-new: 10
    emergency-established: 100
    emergency-closed: 0
    emergency-bypassed: 50
  tcp:
    new: 60
    established: 600
    closed: 60
    bypassed: 100
    emergency-new: 5
    emergency-established: 100
    emergency-closed: 10
    emergency-bypassed: 50
  udp:
    new: 30
    established: 300
    bypassed: 100
    emergency-new: 10
    emergency-established: 100
    emergency-bypassed: 50
  icmp:
    new: 30
    established: 300
    bypassed: 100
    emergency-new: 10
    emergency-established: 100
    emergency-bypassed: 50

stream:
  memcap: 256mb # 64mb customised
  checksum-validation: yes      # reject incorrect csums
  inline: yes                  # customised, auto will use inline mode in IPS mode, yes or no set it statically
  reassembly:
    memcap: 256mb
    depth: 1mb                  # reassemble 1mb into a stream
    toserver-chunk-size: 2560
    toclient-chunk-size: 2560
    randomize-chunk-size: yes

host:
  hash-size: 4096
  prealloc: 1000
  memcap: 32mb



decoder:
  teredo:
    enabled: true
    ports: $TEREDO_PORTS # syntax: '[3544, 1234]' or '3533' or 'any'.

  vxlan:
    enabled: true
    ports: $VXLAN_PORTS # syntax: '[8472, 4789]' or '4789'.

  vntag:
    enabled: false

  geneve:
    enabled: true
    ports: $GENEVE_PORTS # syntax: '[6081, 1234]' or '6081'.



detect:
  profile: medium
  custom-values:
    toclient-groups: 3
    toserver-groups: 25
  sgh-mpm-context: auto
  inspection-recursion-limit: 3000

  prefilter:
    default: mpm

  grouping:

  profiling:
    grouping:
      dump-to-disk: false
      include-rules: false      # very verbose
      include-mpm-stats: false


mpm-algo: auto


spm-algo: auto

threading:
  set-cpu-affinity: no
  cpu-affinity:
    - management-cpu-set:
        cpu: [ 0 ]  # include only these CPUs in affinity settings
    - receive-cpu-set:
        cpu: [ 0 ]  # include only these CPUs in affinity settings
    - worker-cpu-set:
        cpu: [ "all" ]
        mode: "exclusive"
        prio:
          low: [ 0 ]
          medium: [ "1-2" ]
          high: [ 3 ]
          default: "medium"
  detect-thread-ratio: 1.0

luajit:
  states: 128

profiling:

  rules:

    enabled: no
    filename: rule_perf.log
    append: yes


    limit: 10

    json: yes

  keywords:
    enabled: no
    filename: keyword_perf.log
    append: yes

  prefilter:
    enabled: no
    filename: prefilter_perf.log
    append: yes

  rulegroups:
    enabled: no
    filename: rule_group_perf.log
    append: yes

  packets:

    enabled: no
    filename: packet_stats.log
    append: yes

    csv:

      enabled: no
      filename: packet_stats.csv

  locks:
    enabled: no
    filename: lock_stats.log
    append: yes

  pcap-log:
    enabled: no
    filename: pcaplog_stats.log
    append: yes


nfq:

nflog:
  - group: 2
    buffer-size: 18432
  - group: default
    qthreshold: 1
    qtimeout: 100
    max-size: 20000


capture:
  disable-offloading: true

netmap:
 - interface: eth2
 - interface: default

pfring:
  - interface: eth0
    threads: auto

    cluster-id: 99

    cluster-type: cluster_flow



  - interface: default

ipfw:



napatech:

    streams: ["0-3"]

    enable-stream-stats: no

    auto-config: yes

    hardware-bypass: yes

    inline: no

    ports: [0-1,2-3]

    hashmode: hash5tuplesorted


default-rule-path: /opt/suricata/etc/suricata/config/rules

rule-files:
  - suricata.rules


classification-file: /opt/suricata/etc/suricata/config/rules/classification.config
reference-config-file: /opt/suricata/etc/suricata/reference.config
threshold-file: /opt/suricata/etc/suricata/threshold.config

suricata.log

Summary
/8/2023 -- 09:18:57 - <Notice> - rule reload starting
2/8/2023 -- 09:19:00 - <Info> - 1 rule files processed. 68786 rules successfully loaded, 0 rules failed
2/8/2023 -- 09:19:00 - <Info> - Threshold config parsed: 0 rule(s) found
2/8/2023 -- 09:19:02 - <Info> - 68789 signatures processed. 1205 are IP-only rules, 14797 are inspecting packet payload, 52759 inspect application layer, 0 are decoder event only
2/8/2023 -- 09:19:08 - <Info> - cleaning up signature grouping structure... complete
2/8/2023 -- 09:19:09 - <Notice> - rule reload complete
2/8/2023 -- 09:20:02 - <Notice> - Signal Received.  Stopping engine.
2/8/2023 -- 09:20:03 - <Info> - time elapsed 93539.617s
2/8/2023 -- 09:20:04 - <Info> - TLS logger logged 7 requests
2/8/2023 -- 09:20:04 - <Info> - (W#01-enp0s3) certificates extracted 0
2/8/2023 -- 09:20:04 - <Info> - TLS logger logged 9 requests
2/8/2023 -- 09:20:04 - <Info> - (W#02-enp0s3) certificates extracted 0
2/8/2023 -- 09:20:04 - <Info> - TLS logger logged 5 requests
2/8/2023 -- 09:20:04 - <Info> - (W#03-enp0s3) certificates extracted 0
2/8/2023 -- 09:20:04 - <Info> - TLS logger logged 10 requests
2/8/2023 -- 09:20:04 - <Info> - (W#04-enp0s3) certificates extracted 0
2/8/2023 -- 09:20:04 - <Info> - TLS logger logged 10 requests
2/8/2023 -- 09:20:04 - <Info> - (W#05-enp0s3) certificates extracted 0
2/8/2023 -- 09:20:04 - <Info> - TLS logger logged 12 requests
2/8/2023 -- 09:20:04 - <Info> - (W#06-enp0s3) certificates extracted 0
2/8/2023 -- 09:20:04 - <Info> - Alerts: 158
2/8/2023 -- 09:20:04 - <Info> - cleaning up signature grouping structure... complete
2/8/2023 -- 09:20:04 - <Notice> - Stats for 'enp0s3':  pkts: 117495, drop: 0 (0.00%), invalid chksum: 0
2/8/2023 -- 09:20:31 - <Notice> - This is Suricata version 6.0.9 RELEASE running in SYSTEM mode
2/8/2023 -- 09:20:31 - <Info> - CPUs/cores online: 6
2/8/2023 -- 09:20:31 - <Info> - Found an MTU of 1500 for 'enp0s3'
2/8/2023 -- 09:20:31 - <Info> - Found an MTU of 1500 for 'enp0s3'
2/8/2023 -- 09:20:31 - <Info> - eve-log output device (regular) initialized: suricata_event.json
2/8/2023 -- 09:20:31 - <Info> - DNP3 log sub-module initialized.
2/8/2023 -- 09:20:31 - <Info> - DNP3 log sub-module initialized.
2/8/2023 -- 09:20:31 - <Info> - http-log output device (regular) initialized: http.log
2/8/2023 -- 09:20:31 - <Info> - tls-log output device (regular) initialized: tls.log
2/8/2023 -- 09:20:31 - <Info> - storing certs in /var/log/suricata/
2/8/2023 -- 09:20:31 - <Info> - stats output device (regular) initialized: stats.log
2/8/2023 -- 09:20:31 - <Info> - Filestore (v2) creating directory /var/log/suricata-filestore-test/filestore
2/8/2023 -- 09:20:31 - <Info> - Filestore (v2) creating directory /var/log/suricata-filestore-test/filestore/00
2/8/2023 -- 09:20:31 - <Info> - Filestore (v2) creating directory /var/log/suricata-filestore-test/filestore/01
2/8/2023 -- 09:20:31 - <Info> - Filestore (v2) creating directory /var/log/suricata-filestore-test/filestore/02
2/8/2023 -- 09:20:31 - <Info> - Filestore (v2) creating directory /var/log/suricata-filestore-test/filestore/03
2/8/2023 -- 09:20:31 - <Info> - Filestore (v2) creating directory /var/log/suricata-filestore-test/filestore/04


...


2/8/2023 -- 10:45:46 - <Info> - 1 rule files processed. 68786 rules successfully loaded, 0 rules failed
2/8/2023 -- 10:45:47 - <Info> - Threshold config parsed: 0 rule(s) found
2/8/2023 -- 10:45:49 - <Info> - 68789 signatures processed. 1205 are IP-only rules, 14797 are inspecting packet payload, 52759 inspect application layer, 0 are decoder event only
2/8/2023 -- 10:45:53 - <Info> - Going to use 6 thread(s)
2/8/2023 -- 10:45:53 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:53 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:53 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:53 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:53 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:53 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:54 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:54 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:54 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:54 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:54 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:54 - <Error> - [ERRCODE: SC_ERR_MAGIC_LOAD(197)] - magic_load failed: could not find any valid magic files!
2/8/2023 -- 10:45:54 - <Notice> - all 6 packet processing threads, 4 management threads initialized, engine started.
2/8/2023 -- 10:45:54 - <Info> - All AFP capture threads are running.
2/8/2023 -- 10:48:32 - <Notice> - rule reload starting
2/8/2023 -- 10:48:35 - <Info> - 1 rule files processed. 68786 rules successfully loaded, 0 rules failed
2/8/2023 -- 10:48:36 - <Info> - Threshold config parsed: 0 rule(s) found
2/8/2023 -- 10:48:37 - <Info> - 68789 signatures processed. 1205 are IP-only rules, 14797 are inspecting packet payload, 52759 inspect application layer, 0 are decoder event only
2/8/2023 -- 10:48:43 - <Info> - cleaning up signature grouping structure... complete
2/8/2023 -- 10:48:43 - <Notice> - rule reload complete

My steps

oot@xo:/# ps  -ef
UID          PID    PPID  C STIME TTY          TIME CMD
secur1ty       1       0  1 09:20 ?        00:01:26 /opt/suricata/bin/suricata --af-packet -c /opt/suricata/etc/suricata/config/suricata.yaml
root          95       1  0 09:20 ?        00:00:00 /usr/sbin/cron
root         107       0  0 09:20 pts/1    00:00:00 bash

I execute the command to hope suricata could reload, but nothing happens and there is no logs in suricata.log.

kill -HUP 1

BUT, I execute the command suricata has some outputs.

kill -USR2 1

2/8/2023 -- 10:48:32 - <Notice> - rule reload starting
2/8/2023 -- 10:48:35 - <Info> - 1 rule files processed. 68786 rules successfully loaded, 0 rules failed
2/8/2023 -- 10:48:36 - <Info> - Threshold config parsed: 0 rule(s) found
2/8/2023 -- 10:48:37 - <Info> - 68789 signatures processed. 1205 are IP-only rules, 14797 are inspecting packet payload, 52759 inspect application layer, 0 are decoder event only
2/8/2023 -- 10:48:43 - <Info> - cleaning up signature grouping structure... complete
2/8/2023 -- 10:48:43 - <Notice> - rule reload complete

ENV

Suricata: 6.0.9
Debian11
Docker Server: 23.0
gosu 1.12

Why suricata cannot receive HUP or suricata cannot reload/restart？
Could you please give me some ideas for that ?
Thanks~

2

Things are working as designed: see 24.1. Suricata — Suricata 7.0.0 documentation

3

my version is 6.0.9.
The manual says that suricata 6.0.9 could receive HUP but it does not work in my side.
https://docs.suricata.io/en/suricata-6.0.9/manpages/suricata.html?highlight=SIGUSR2#signals

image1501×634 56.2 KB

4

The documentation states what happens following the receipt of a signal.

SIGHUP is not for rule reloads.

Suricata will not reload it’s configuration settings when receiving SIGHUP.

SIGUSR2 causes Suricata to reload (1) rules and (2) rule variables from the Suricata configuration file

5

SIGUSR2 is for the pure rule reload which happened according to your log output. SIGHUP is taking care of the logfiles as described in toe documentation. There is no word about SIGHUP doing a restart of Suricata. This can be done by whatever is taking care of the process, for example systemctl restart suricata on systemd.

6

I have two questions:
Q1: Does Suricata could receive HUP signal and reload its configuration files such as suricata.yaml?

Q2: How could I take the changes effect when I update the suricata.yaml in a docker container?

Thanks~

7

Suricata doesn’t reload configuration settings – ever – once it’s started.

Rule reload involves re-reading rule variables only

You’d have to restart Suricata to reload values from the configuration file

8

OK.
As I understand, Suricata could release log files (such as suricata.log, stats.log etc) handler and re-open the files as he receives HUP signal. Is it?

9

Not really released, but the effect could be considered the same.

On SIGHUP a flag is set that Suricata should close/reopen every output file it has open. The actual open and close don’t actually happen until the next write.
